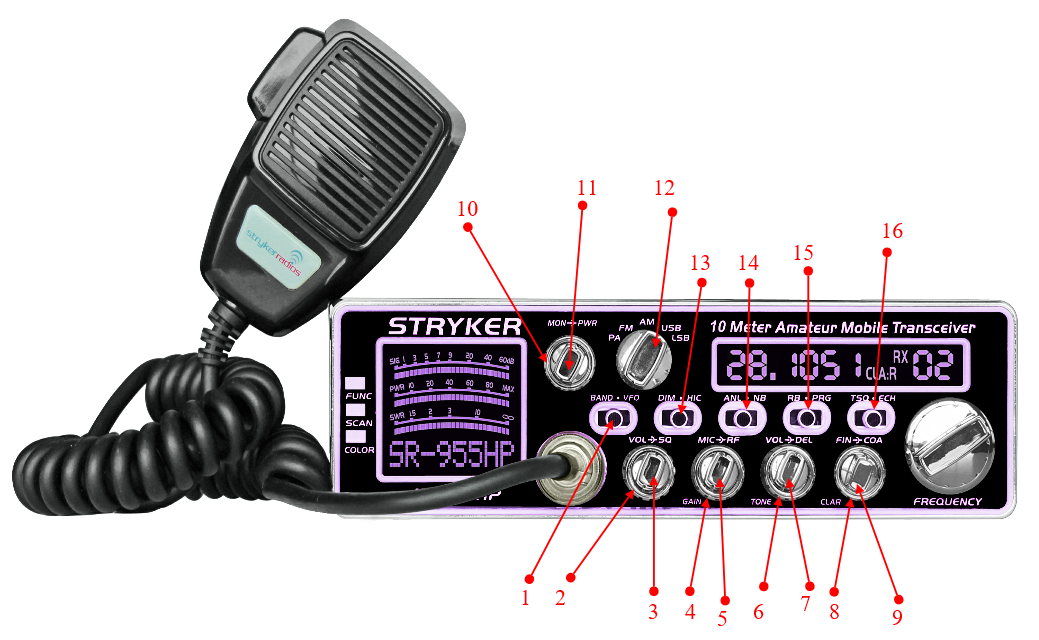

(Click Picture For Larger View)
- Band / VFO Switch Set to Band, Turn Frequency Knob to band 4 then set switch to the middle position
- Receiver Squelch Start with it all the way to the left
- Receiver Volume Set to a comfortable level
- RF Gain Set all the way to the right
- Microphone Gain Set all the way to the right
- Echo Delay With the MON (talkback) turned on, set to the desired level
- Echo Volume With the MON (talkback) turned on, set to the desired level
- Coarse Clarifier Set at 12 O'clock or + 0K
- Fine Clarifier Set to 12 O'clock on AM. For SSB turn to tune in the signal, you are receiving
- RF Power Output Control Set 12 O’clock
- Monitor (Talkback) Set to a comfortable level
- Mode Selector Set to AM
- Dimmer Switch / Hi-Cut Filter Set to middle position
- Noise Blanker / ANL Set to ANL
- Roger Beep Switch / PRG Set to middle position
- TSQ / Echo Switch Set to middle position or to the right if you would like to use echo
If you accidentally change a setting in the function menu, perform a reset and they will automatically be set to the default position.
- With the radio turned off, press and hold the FUNC, COLOR & SCAN buttons.
- While still pressing and holding them, power the radio on. The radio will display “REST ALL”,
- Now release the buttons and wait for the radio to display “REST END”.
- Then turn the radio off and then back on, it’s now been restored to the factory software settings.
